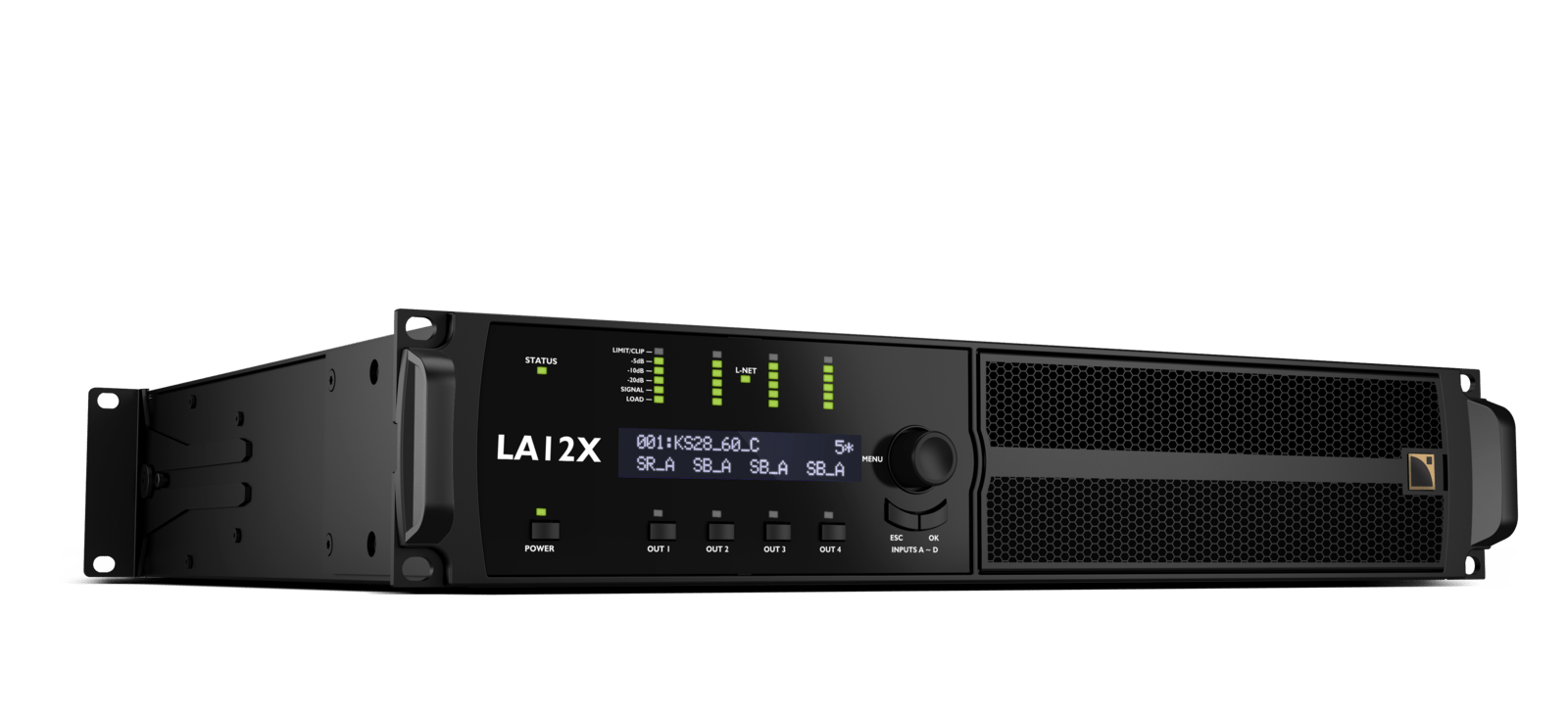

Amplified controller

Architecture	4 x 4
Output Power	4 x 3300 W at 2.7 ohms 4 x 2600 W at 4 ohms 4 x 1400 W at 8 ohms
Power supply	Universal SMPS with PFC
Inputs	Milan-AVB, AES/EBU, Analog
Network	Milan-certified with seamless network redundancy

Địa chỉ: 128 Hàng Trống - phường Hoàn Kiếm - TP Hà Nội Điện thoại: 042.3.826.0732 - Zalo 098 204 8825 Email: Contact@adongcompany.vn

Amplification class	Class D
Output power, all channels loaded	4 x 3300 W at 2.7 ohms 4 x 2600 W at 4 ohms 4 x 1400 W at 8 ohms
Power supply model	Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating	100 V - 240 V ±10%, 50-60 Hz

Digital Signal Processor (DSP)	Dual SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing	Flexible 4x4 routing matrix
Per output channel	Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing, Air absorption compensation filters Internal IIR and FIR EQ algorithms L-DRIVE advanced system protection Output delay from 0 to 1000 ms

loudspeaker management

L-DRIVE advanced system protection

standard latency (analog/digital inputs)	3.84 ms
low latency (analog/digital inputs)	0.84 ms

Milan-AVB	4 channels from 1 stream (of up to 8 channels)
AES/EBU	4 channels AES/EBU (2 x AES3) with SRC
analog	4 channels

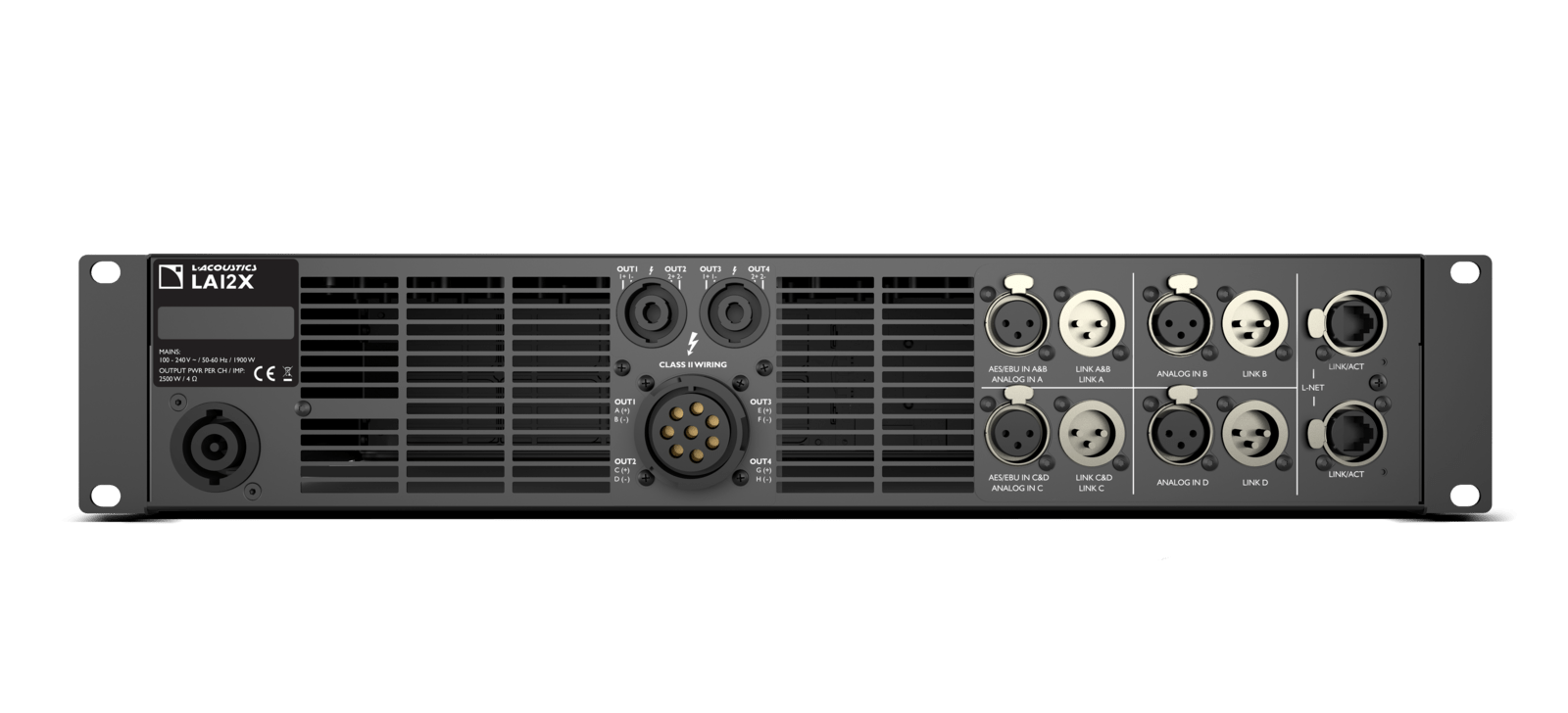

connections	2 etherCON 1 Gb/s I/O+ control 4 female 3-pin XLR (2 x switching analog/AES3) 4 male 3-pin XLR links

loudspeaker connections

2 × 4-point speakON®
1 × 8-point CA-COM

Mains and power supply	Over and under voltage / over temperature / overcurrent
Power outputs	Over current / DC / short circuit / rail over and under voltage / over temperature
